1 5030 020 011 | Flexa

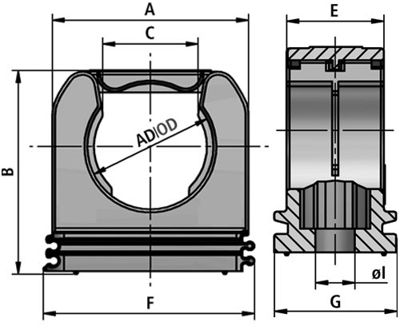

Tubing holders, (L x W x H) 29 x 20 x 27 mm, PA, gray, 1 5030 020 011

Order No.: 91F2540
EAN: 4025113185884
MPN:
1 5030 020 011
5030.020.011
Series: RQS
1 5030 020 011 Flexa Cable Management Accessories Image 1
1 5030 020 011 Flexa Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
25 pcs.
1.8326 €
50 pcs.
1.7136 €
100 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale

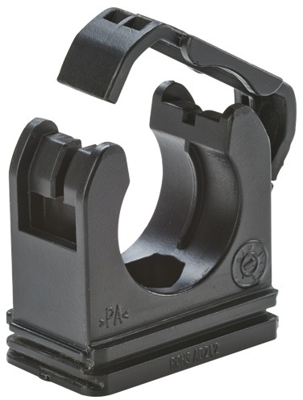

Tubing clamp, 1 5030 020 011, Flexa

One-piece tubing clamp for medium and heavy applications with through hole for fastening by screws, ribbed fixing for strain relief, quick assembly, cover connected with integral hinge, assembly of varying sizes joined feasible and applicable in combination with C-profile bars.

Features

  • Quick assembly by means of a film hinge
  • Free of silicone, cadmium, halogen
  • Fit for high mechanical stress
  • Impact-resistant

Applications

  • For medium and heavy duty applications
  • Machine and plant constructions
  • Insulated electrical installations
Technical specifications
Width 20 mm
Material PA
Product type tubing holders
Colour gray
min. operating temperature -40 °C
Length 29 mm
max. operating temperature 120 °C
Height 27 mm
Logistics
Country of origin DE
Customs tariff number 39174000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
