1 5010 023 063 | Flexa

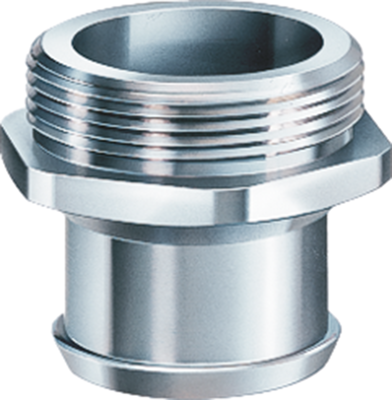

Hose grommet, (L x W) 62 x 72 mm, brass, nickel-plated, for protective hoses, 1 5010 023 063
Unit Price (€ / pc.)
125.3784 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
626.89 € *
Price list
Quantity
Price per unit*
5 pcs.
125.3784 €
10 pcs.
116.0964 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding barbed fittings for conduit, series NIMS-M, type 5010.023.
With fixed connecting thread and hexagonal wrench faces, metric thread to EN 60423; Material: nickel-plated brass. Degree of protection: IP 64. Operating temperatures: –40 to +120 °C.

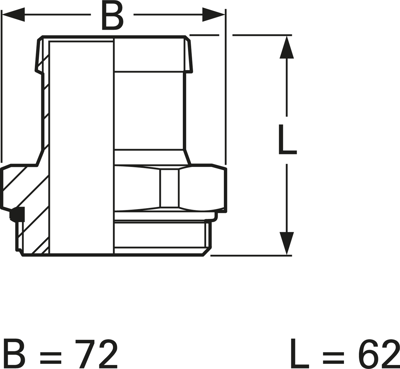

Technical attributes (type, connection thread, for tubing inner diameter, dimension B, dimension L): 5010.023.063, M 63 x 1.5, 50 mm, B 72, L 62 mm
Technical specifications
| Material | brass, nickel-plated | |
| Product type | conduit olive | |
| Length | 62 mm | |
| min. operating temperature | -40 °C | |
| Suitable for | protective hoses | |
| Width | 72 mm | |
| max. operating temperature | 120 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74122000 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
