1 5010 023 016 | Flexa

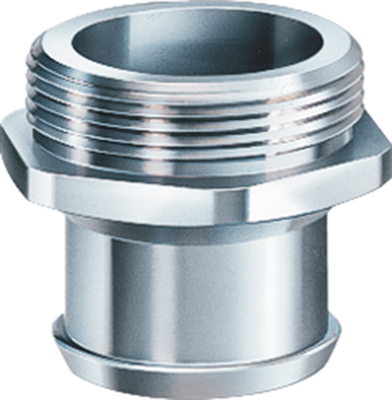

Hose grommet, (L x W) 29 x 19 mm, head Ø 17 mm, brass, nickel-plated, for protective hoses, 1 5010 023 016
Unit Price (€ / pc.)
9.8175 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
5 pcs.
8.8298 €
10 pcs.
8.1753 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding barbed fittings for conduit, series NIMS-M, type 5010.023.
With fixed connecting thread and hexagonal wrench faces, metric thread to EN 60423; Material: nickel-plated brass. Degree of protection: IP 64. Operating temperatures: –40 to +120 °C.

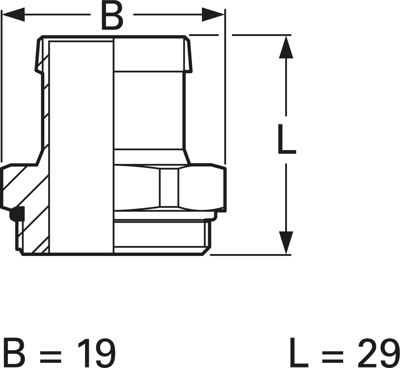

Technical attributes (type, connection thread, for tubing inner diameter, dimension B, dimension L): 5010.023.016, M 16 x 1.5, 10 mm, B 19, L 29 mm
Technical specifications
| Material | brass, nickel-plated | |
| Product type | conduit olive | |
| Head Diameter | 17 mm | |
| Length | 29 mm | |
| min. operating temperature | -40 °C | |
| Suitable for | protective hoses | |
| Width | 19 mm | |
| max. operating temperature | 120 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74122000 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
