1 5040 442 202 | Flexa
Tubing holders, for profile rails, max. bundle Ø 34.5 mm, PA, black, (L x W x H) 66 x 30 x 86 mm, 1 5040 442 202
Unit Price (€ / pc.)
25.3708 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
25.37 € *
Price list
Quantity
Price per unit*
1 pcs.
25.3708 €
10 pcs.
21.8722 €
*incl. VAT plus shipping costs
Subject to prior sale
Tubing clamp system, 1 5040 442 202, Flexa

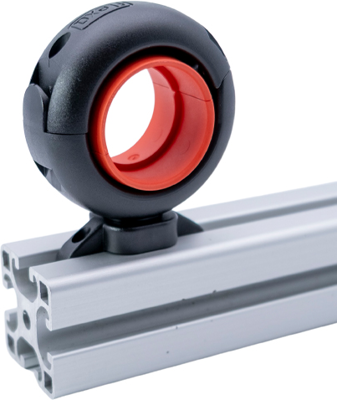

Rotatable tubing holder for mounting on profile rails / maximum mobility with red MOVE insert, especially for cobots and small industrial robots at slow and medium speeds in the field of robotics.

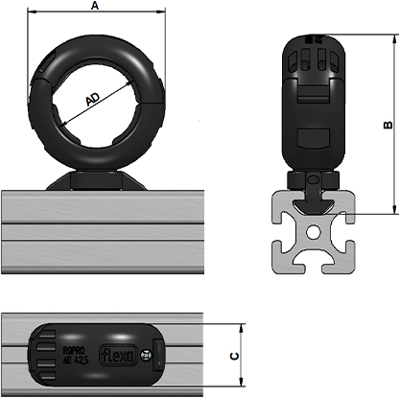

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | tubing holders | |
| Version | for profile rails | |
| max. Bundle diameter | 34.5 mm | |
| Length | 66 mm | |
| Width | 30 mm | |
| Height | 86 mm | |
| Self-adhesive | No | |
| Material | PA | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
