1 0239 202 010 | Flexa

Plastic braided sleeve, range 4-10 mm, black, halogen free, -50 to 150 °C, 1 0239 202 010

Order No.: 91F4140
EAN: 4025113186966
MPN:
1 0239 202 010
0239.202.010
Series: HG-PA

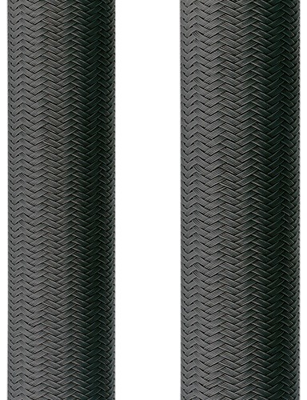

1 0239 202 010 Flexa Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
0.7378 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
73.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
0.7378 €

Braided sleeve, 1 0239 202 010, Flexa

Braid consisting of round braided monofiles with double crossed looping at the different braiding angles.

Features

  • Easy pulling in of cables
  • The braiding becomes tight by stretching
  • Oil and benzine resistant
  • Widely resistent to solvents and acids
  • Free of halogen
  • Self-extinguishing
  • Flame-resistant

Applications

  • Cable bundling
  • Machine and plant constructions
  • Automotive
  • Railway industry
  • Shipbuilding
  • Automation
  • Electrical installations
Technical specifications
Colour black
Halogen free Yes
Application range 4-10 mm
Optical Coverage 85 %
Version plastic braided sleeve
min. operating temperature -50 °C
Material PA
max. operating temperature 150 °C
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
