10067412 | Fischer Elektronik
Thermal transfer compound, 4.0 g can, WLP 004
Unit Price (€ / pc.)
4.7243 € *
Available: 23 pcs.
Total Price:
4.72 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7243 €
10 pcs.
4.1412 €
100 pcs.
3.6295 €
250 pcs.
3.4986 €
1000 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale
Thermal transfer compounds with silicon additive, type Fischer WLP.
For reducing thermal transition resistance between semiconductors and heatsinks; Composition: silicon oil, inorganic filling agents. Color: white. Density: 1.1 g/cm³. Thermal conductivity: 0.61 W/mK. Specific resistance: 10^12 ohm/cm. Melting point: 260 °C. No bleed-off for 4.0 h at 200 °C. Operating temperatures: –70 to +250 °C. The compound is inflammable and insoluble in water.

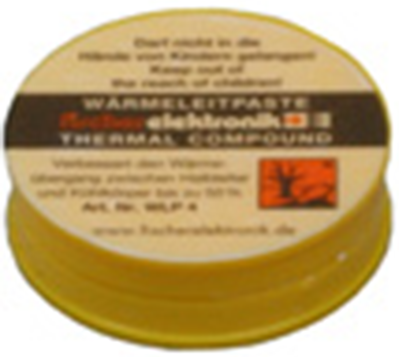

Type: WLP 004, 4.0 g can
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Packaging | can | |
| Contents | 4 g | |
| Thermal conductivity | 0.61 W/mK | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 250 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39100000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
Signal word
| Property | Value |
|---|---|
| Gefahrenpiktogramme | |
| Information on dangerous goods | Signal word: WarningHazard statements:
Precautionary statements:
|
