10128086 | Fischer Elektronik

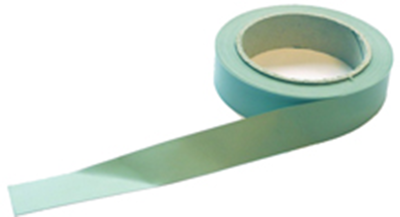

Heat conducting tape, 1.22 W/mK, silicone, (L x W) 1 m x 30 mm, 10128086
Unit Price (€ / pc.)
13.4827 € *
Available: 21 pcs.
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
5 pcs.
12.7806 €
10 pcs.
11.9595 €
25 pcs.
10.9004 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon tapes for semiconductors, type Fischer WS.
Standard version of 0.3 mm thickness; Operating temperatures: –60 to +180 °C. Thermal resistance: 0.4 K/W. Dielectric strength: 10 kV. Elongation: 100 %.
Technical attributes (type, for package size, dimensions): WST-30, 1.0 m tape, 30 mm width
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thermal conductivity | 1.22 W/mK | |
| Thermal resistense | 0.4 K/W | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Material | silicone | |
| Thickness | 0.3 mm | |
| Length | 1 m | |
| Width | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85462000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
