10067327 | Fischer Elektronik
Thermal joint film, 0.5 W/mK, aluminum, (L x W) 100 x 100 mm, 10067327
Unit Price (€ / pc.)
15.1725 € *
Available: 7 pcs.
Total Price:
15.17 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1725 €
10 pcs.
14.1015 €
50 pcs.
12.9710 €
100 pcs.
11.6858 €
*incl. VAT plus shipping costs
Subject to prior sale

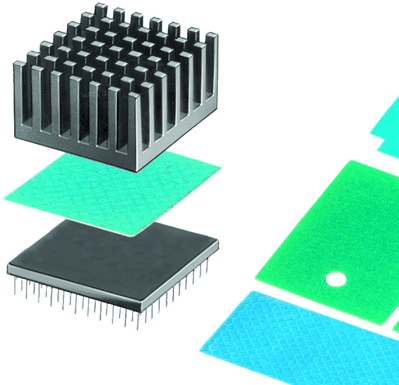

Heat transfer foils, adhesive on both sides, type Fischer WLFT 405.
Thermally conductive, electrically non-insulating, double-sided bonding. Full substitute for mechanical joints; Specific thermal resistance: 3.4 °C cm²/W. Thermal conductivity: 0.5 W/mK. Overall thickness: 0.15 (± 0.03) mm. Substrate: aluminum foil, 0.05 mm. Adhesive layer: acrylate (pressure-sensitive) on both sides. Operating temperatures: –40 to +150 °C. Inflammability class: UL 94 V-0.
Type: WLFT 405 P100, 100 x 100 mm section
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -30 °C | |
| Thermal conductivity | 0.5 W/mK | |
| Thickness | 0.15 mm | |
| max. operating temperature | 125 °C | |
| Width | 100 mm | |
| Material | aluminum | |
| Length | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39219090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
