10006688 | Fischer Elektronik
Thermal joint film, 1.5 W/mK, silicone, (L x W) 200 x 300 mm, 10006688
No longer available from manufacturer
Unit Price (€ / pc.)
138.7421 € *
Available: 7 pcs.
Total Price:
138.74 € *
Price list
Quantity
Price per unit*
1 pcs.
138.7421 €
2 pcs.
133.1967 €
5 pcs.
129.2102 €
*incl. VAT plus shipping costs
Subject to prior sale

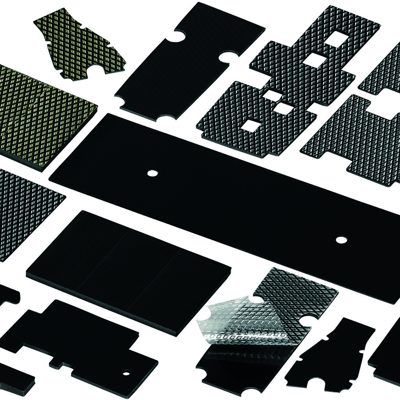

Silicon sections for heat dissipation, type Fischer GEL.
Silicon foil with high degree of heat dissipation; Features: soft, elastic and compressible, equalizes unevenness. Thermal conductivity: 1.5 W/mK. Operating temperatures: –60 to +200 °C.
Standard version, type GEL.
Dielectric strength: 14 kV/mm. Elongation: 100 %. Inflammability: UL 94 V-0.
Technical attributes (type, material thickness (D), thermal resistance. (thermal specs relate to 1 sq. inch, 6.45 cm²)): GEL 30, D 3.0 mm, 2.43 °C/W
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| max. operating temperature | 200 °C | |
| Length | 200 mm | |
| Thermal conductivity | 1.5 W/mK | |
| Width | 300 mm | |
| min. operating temperature | -60 °C | |
| Thickness | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 39209990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
