DIL 16 PEK | Fischer Elektronik
IC sockets with extraction wedge, 16 pole, pitch 2.54 mm (7.62 mm), CuZn-alloy for DIL-IC
Unit Price (€ / pc.)
5.2479 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

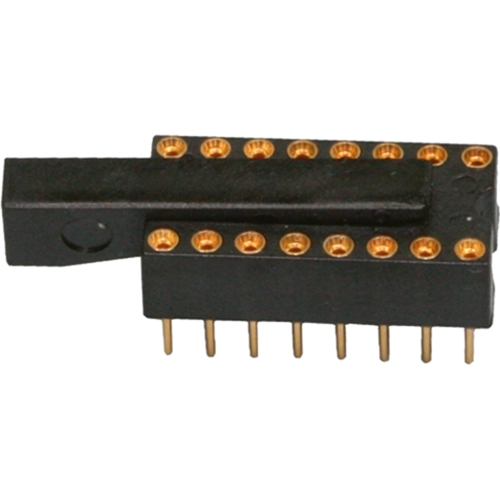

IC sockets with ejector wedge, type Fischer DIL 16 PEK.
Insulating body: PPS to UL 94 V-0. Contact material: beryllium copper, gold-plated. Rated current: 1.5 A. Rated voltage: 150 VDC. Operating temperatures: –40 to +200 °C.
Type: DIL 16 PEK, IC socket, 16-pole

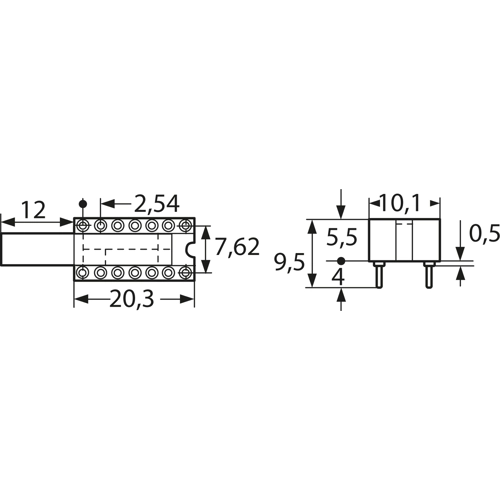

Technical specifications
| Version | IC sockets with extraction wedge | |
| Width | 10.1 mm | |
| Suitable for | DIL-IC | |
| Height | 5.5 mm | |
| Contact material | CuZn-alloy | |
| Length | 32.3 mm | |
| Material | Polyphenylene sulfide/Glass fiber | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage | 150 V | |
| Rated current | 1.5 A | |
| Pin number | 16 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
