10147852 | Fischer Elektronik
Semiconductor socket, for TO-220, 10147852
Unit Price (€ / pc.)
1.5351 € *
Available: 405 pcs.
Total Price:
7.68 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5351 €
10 pcs.
1.4161 €
50 pcs.
1.2376 €
250 pcs.
1.0829 €
1000 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

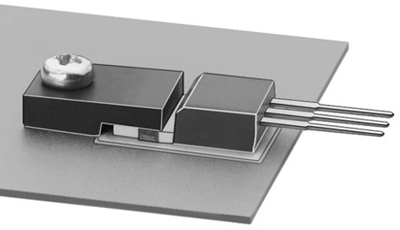

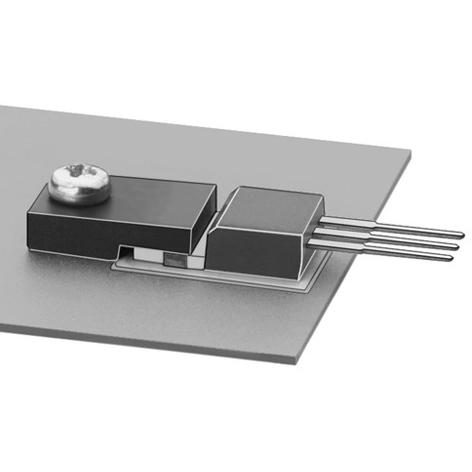

Semiconductor mounting brackets, type Fischer ISP.
Suitable for use as insulating bracket that increases the dielectric strength for the assembly of semiconductors in TO 220 and TO 218 packages. Instead of a screw, a spigot that snaps into the drilled hole is used to mount the semiconductor; Material: glass fiber-reinforced polyamide. Heat distortion temperature: 205 °C (1.8 MPa), 135 °C (8-0 MPa). Dielectric strength: 27 kV/mm. Color: black.

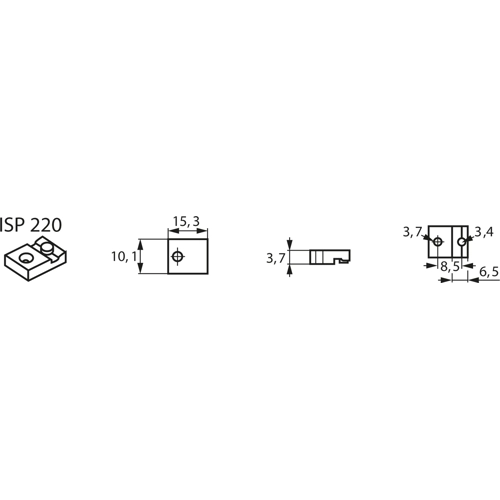

Type: ISP 220, semiconductor snap mount for TO 220
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 3.7 mm | |
| Version | semiconductor socket | |
| Material | PA/glass fibers | |
| Width | 10.1 mm | |
| Suitable for | TO-220 | |
| Length | 15.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85469090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
