Semiconductor socket, for TO-220, 10146977

Order No.: 60B452
EAN: 4099879024107
MPN:
10146977
ISP 220 V
Series: ISP

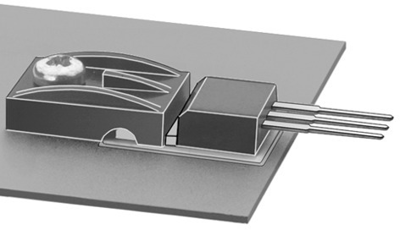

10146977 Fischer Elektronik Semiconductor Sockets, Holders Image 1

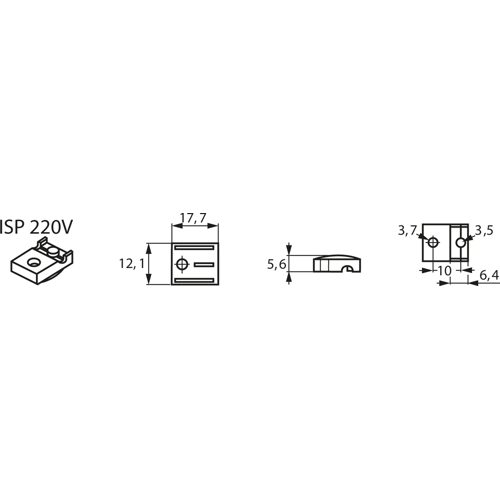

10146977 Fischer Elektronik Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
1.3090 € *
Available: 6 pcs.
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3090 €
50 pcs.
1.1424 €
250 pcs.
0.9877 €
1000 pcs.
0.8568 €
2500 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

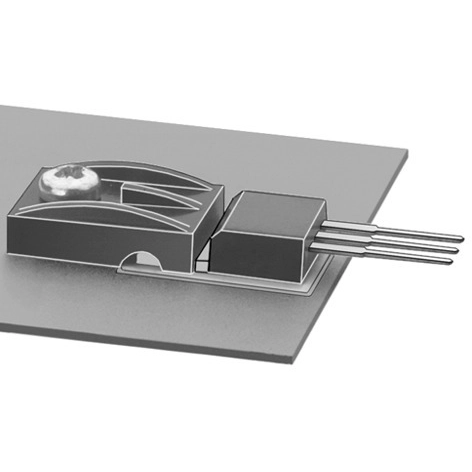

Semiconductor mounting brackets, type Fischer ISP.

Suitable for use as insulating bracket that increases the dielectric strength for the assembly of semiconductors in TO 220 and TO 218 packages. Instead of a screw, a spigot that snaps into the drilled hole is used to mount the semiconductor; Material: glass fiber-reinforced polyamide. Heat distortion temperature: 205 °C (1.8 MPa), 135 °C (8-0 MPa). Dielectric strength: 27 kV/mm. Color: black.

Type: ISP 220 V, semiconductor snap mount for TO 220

Technical specifications
Filter Property Value
Width 12.1 mm
Material PA/glass fibers
Version semiconductor socket
Height 5.6 mm
Length 17.7 mm
Suitable for TO-220
Logistics
Property Value
Country of origin DE
Customs tariff number 85469090
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
