10065572 | Fischer Elektronik
Semiconductor clip, for TO-218, TO-220, TO-247, TO-264, SOT-32, SIP-Multiwatt, 10065572
Unit Price (€ / pc.)
0.5831 € *
Available: 146 pcs.
Next delivery: 500 pcs. on 2025-06-17
Leadtime: On Request **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.4284 €
250 pcs.
0.3570 €
1000 pcs.
0.3058 €
2500 pcs.
0.2689 €
*incl. VAT plus shipping costs
**Subject to prior sale

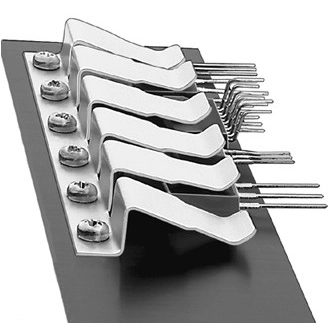

Multiple semiconductor clips, type Fischer THFM.
For TO 218, TO 220, TO 247, TO 264, SOT 32 and diverse SIP Multiwatt, made of stainless steel for screw mounting; Spring force: 60 N.

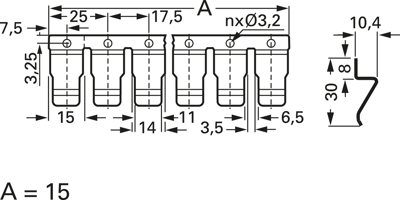

Type: THFM 1, single, A 15,0 mm
Technical specifications
| Height | 10.2 mm | |
| Length | 172.5 mm | |
| Version | Semiconductor clip | |
| Material | stainless steel | |
| Suitable for | TO-218, TO-220, TO-247, TO-264, SOT-32, SIP-Multiwatt |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73201011 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
