10064971 | Fischer Elektronik

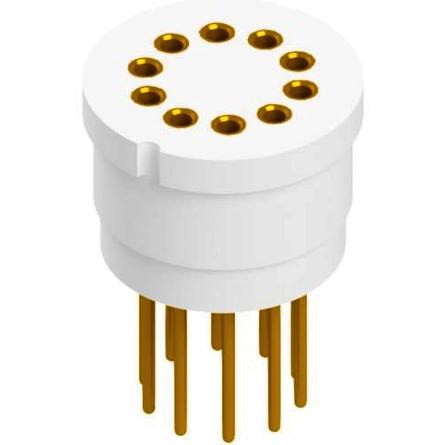

Semiconductor socket, 10 pole, CuZn alloy for TO-5, 10064971
Unit Price (€ / pc.)
13.4589 € *
Standard delivery time from the manufacturer is: On Request
Semiconductor sockets, type Fischer TF.
For TO 5; Insulating body: PTFE (Teflon) UL 94 SE-0. Contact material: nickel-plated brass, additionally gold-plated. Rated current: 1.5 A. Rated voltage: 100 VDC. Operating temperatures: –200 to +260 °C.
Technical attributes (type, number of poles): TF 510, 10-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | semiconductor socket | |
| Suitable for | TO-5 | |
| Pin number | 10 pole | |
| Contact material | CuZn alloy | |
| Material | PTFE | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Width | 7.3 mm | |
| Height | 10.3 mm | |
| min. operating temperature | -200 °C | |
| max. operating temperature | 260 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
