10064967 | Fischer Elektronik

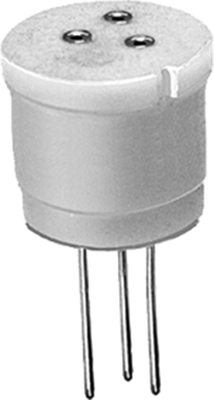

Semiconductor socket, 3 pole, CuZn alloy for TO-18, 10064967
Unit Price (€ / pc.)
6.9139 € *
Available: 6 pcs.
Next delivery: 5 pcs. on 2025-09-23
Total Price:
6.91 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9139 €
10 pcs.
6.0690 €
100 pcs.
5.3431 €
250 pcs.
5.1408 €
1000 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale
Semiconductor sockets, type Fischer TF.
For TO 5; Insulating body: PTFE (Teflon) UL 94 SE-0. Contact material: nickel-plated brass, additionally gold-plated. Rated current: 1.5 A. Rated voltage: 100 VDC. Operating temperatures: –200 to +260 °C.
For TO 18, type TF.
Technical attributes (type, number of poles): TF 183, 3-pole, gold-plated

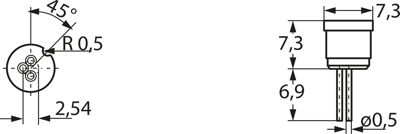

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | CuZn alloy | |
| Pin number | 3 pole | |
| Height | 7.3 mm | |
| min. operating temperature | -200 °C | |
| Rated current | 1.5 A | |
| max. operating temperature | 260 °C | |
| Version | semiconductor socket | |
| Material | PTFE | |
| diameter | 7.3 mm | |
| Rated voltage | 100 V | |
| Suitable for | TO-18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
