10045052 | Fischer Elektronik

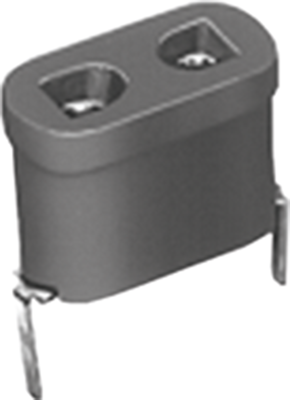

Crystal holder, 2 pole, pitch 12.5 mm, CuSn alloy for oscillating quartzes, 10045052
Unit Price (€ / pc.)
0.7021 € *
Available: 32 pcs.
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6545 €
25 pcs.
0.6188 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
Resonator sockets, type Fischer QS 25-GS.
For PCB mounting, Punched silver-plated contacts; Insulating body: polyamide GF to UL 94 V-0. Rated current: 2.5 A. Rated voltage: 125 VDC. Operating temperatures: –40 to +180 °C.
Type: QS 25-GS, resonator socket

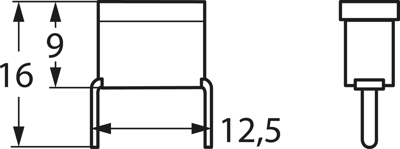

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | quartz socket | |
| Suitable for | oscillating quartzes | |
| Pin number | 2 pole | |
| Grid | 12.5 mm | |
| Contact material | CuSn alloy | |
| Material | PA/glass fibers | |
| Rated voltage | 125 V | |
| Rated current | 2.5 A | |
| Length | 12.5 mm | |
| Width | 5 mm | |
| Height | 16 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 180 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
