10045041 | Fischer Elektronik

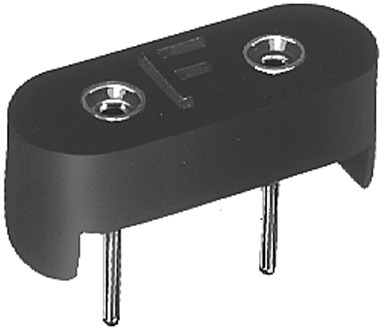

Quartz socket, 2 pole, pitch 4.9 mm , CuZn-alloy for oscillating quartzes
Unit Price (€ / pc.)
0.9163 € *
Available: 162 pcs.
Leadtime: 10 Weeks **
Resonator sockets with HC 18 package, type Fischer PQ 18.

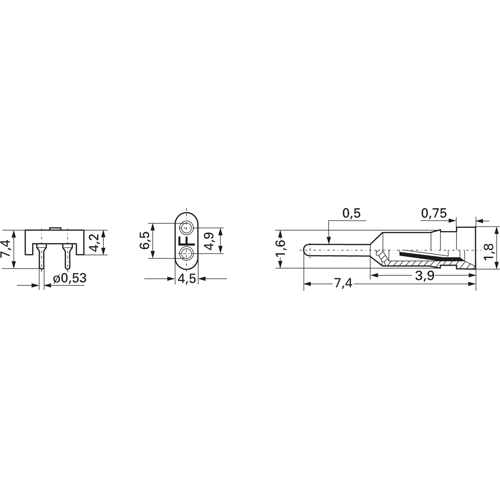

Precision sockets for PCB mounting, gold-plated contacts; Contact pitch: 4.9 mm. Receptacles: for pins of 0.5 mm diameter.
Type: PQ 18G, resonator socket
Technical specifications
| Version | quartz socket | |
| Width | 4.5 mm | |
| diameter | 0.5 mm | |
| Suitable for | oscillating quartzes | |
| Height | 7.4 mm | |
| Contact material | CuZn-alloy | |
| Material | polyamide/glass fiber | |
| max. operating temperature | 163 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage | 60 V | |
| Rated current | 1.5 A | |
| Pin number | 2 pole | |
| Grid | 4.9 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
