10044910 | Fischer Elektronik

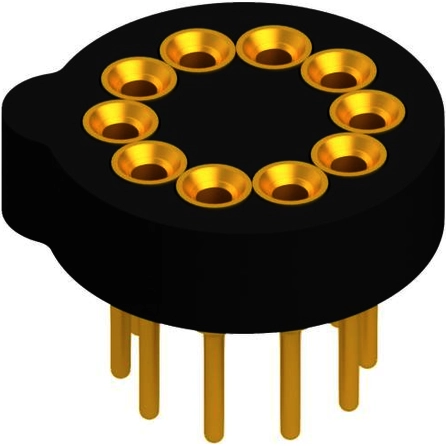

Semiconductor socket, 10 pole, brass for TO-5, 10044910
Unit Price (€ / pc.)
7.0805 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.08 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0805 €
5 pcs.
6.7116 €
10 pcs.
6.2713 €
25 pcs.
5.7239 €
*incl. VAT plus shipping costs
Subject to prior sale
Semiconductor sockets, type Fischer PF.
Suitable for TO 5, extra-flat design (3.0 mm), for PCB mounting. Contacts: gold-plated, Insulating body: polysulphone GV. Operating temperatures: - 65 to +180 °C. Diameter: 9.5 mm.
Technical attributes (type, number of poles, maximum contact pitch (by diameter). Contact finish): PF 510 G, 10-pole, 5.84 mm, gold-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | semiconductor socket | |
| Suitable for | TO-5 | |
| Pin number | 10 pole | |
| Contact material | brass | |
| Material | PA/glass fibers | |
| Rated voltage | 60 V | |
| Rated current | 1.5 A | |
| Length | 7.4 mm | |
| Width | 2.9 mm | |
| Height | 7.4 mm | |
| diameter | 9.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 163 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
