10043885 | Fischer Elektronik
IC plug-in adapter strips with solder pins on both sides Ø 0.50 mm, 32 pole, pitch 2.54 mm, CuZn alloy, tin plated, 10043885
Unit Price (€ / pc.)
4.3554 € *
Available: 106 pcs.
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0460 €
25 pcs.
3.7842 €
50 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

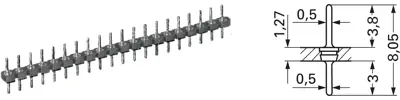

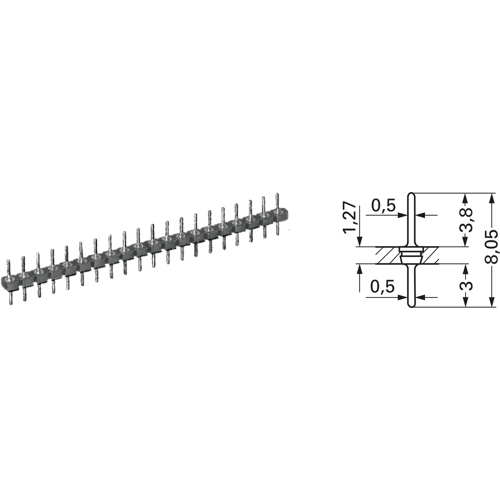

IC socket strips with solder pin plugs on both sides, type Fischer MK LP 41.
2.54 mm grid, 32-pole, can be split; Insulating body: PA 4.6 GF. Contact material: CuZn alloy. Finish: nickel-plated, additionally tinned or gold-plated. Rated current: 1.5 A. Rated voltage: 60 VDC. Operating temperatures: –40 to +163 °C.
Type: MK LP 41, tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 163 °C | |
| Rated current | 1.5 A | |
| min. operating temperature | -40 °C | |
| Height | 8.05 mm | |
| Material | PA/glass fibers | |
| Width | 2.5 mm | |
| Grid | 2.54 mm | |
| Rated voltage | 60 V | |
| Pin number | 32 pole | |
| Version | IC plug-in adapter strips with solder pins on both sides Ø 0.50 mm | |
| Contact material | CuZn alloy, tin plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
