10041097 | Fischer Elektronik

IC-socket strip, 50 pole, pitch 2.54 mm, CuZn alloy for DIL-IC, 10041097

Order No.: 15B5810
EAN: 4099879023636
MPN:
10041097
MK 17 Z 50
Series: MK 17
10041097 Fischer Elektronik Semiconductor Sockets, Holders Image 1
10041097 Fischer Elektronik Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
7.9611 € *
Available: 20 pcs.
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
5 pcs.
7.5565 €
10 pcs.
7.0686 €
25 pcs.
6.4379 €
*incl. VAT plus shipping costs
Subject to prior sale

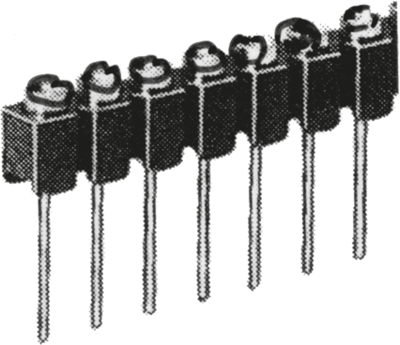

IC spring socket strips with long solder pins, type Fischer MK 17 Z/50.

50-pole, splittable; Insulating body: PA 4.6 GF. Contact material: CuZn, gold-plated spring contact, tinned solder pins. Rated current: 1.5 A. Rated voltage: 60 VDC. Operating temperatures: –40 to +163 °C. Grid: 2.54 mm.

Type: MK 17 Z 50, IC spring socket strip

Technical specifications
Filter Property Value
Suitable for DIL-IC
Pin number 50 pole
Contact material CuZn alloy
max. operating temperature 163 °C
Rated voltage 60 V
min. operating temperature -40 °C
Material PA/glass fibers
Version IC contact spring strip
Rated current 1.5 A
Grid 2.54 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
