10031408 | Fischer Elektronik
IC socket, 16 pole, pitch 2.54 mm (7.62 mm), CuZn alloy for DIL-IC, 10031408
Unit Price (€ / pc.)
7.5922 € *
Available: 5 pcs.
Total Price:
7.59 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5922 €
5 pcs.
7.1995 €
10 pcs.
6.7354 €
25 pcs.
6.1404 €
*incl. VAT plus shipping costs
Subject to prior sale

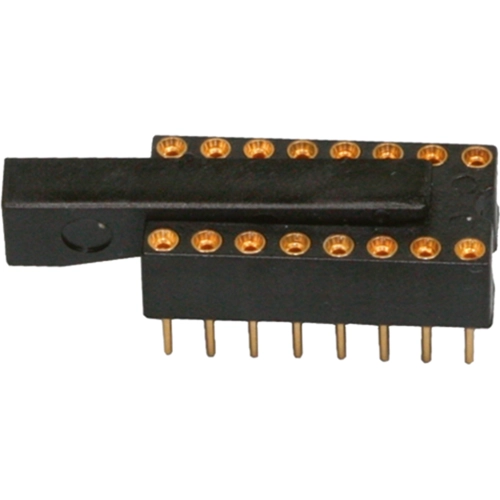

IC sockets with ejector wedge, type Fischer DIL 16 PEK.
Insulating body: PPS to UL 94 V-0. Contact material: beryllium copper, gold-plated. Rated current: 1.5 A. Rated voltage: 150 VDC. Operating temperatures: –40 to +200 °C.
Type: DIL 16 PEK, IC socket, 16-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | IC socket | |
| Version | with extraction wedge | |
| Suitable for | DIL-IC | |
| Pin number | 16 pole | |
| Grid | 2.54 mm | |
| Contact material | CuZn alloy | |
| Material | PPS/glass fibers | |
| Rated voltage | 150 V | |
| Rated current | 1.5 A | |

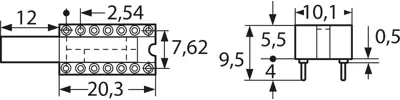

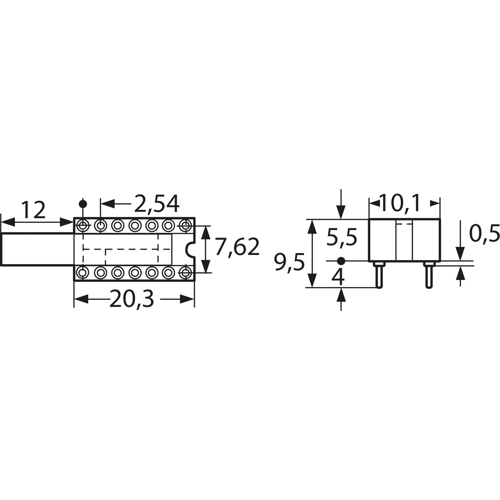

| Length | 32.3 mm | |
| Width | 10.1 mm | |
| Height | 5.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
