10006400 | Fischer Elektronik

Rivet holder, for TO-220, 10006400

Order No.: 60B890
EAN: 4099879024183
MPN:
10006400
EPN 1
Series: EPN
10006400 Fischer Elektronik Semiconductor Sockets, Holders Image 1
10006400 Fischer Elektronik Semiconductor Sockets, Holders Image 2
10006400 Fischer Elektronik Semiconductor Sockets, Holders Image 3
Image may differ
Unit Price (€ / pc.)
0.2118 € *
Available: 300 pcs.
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2118 €
50 pcs.
0.1511 €
250 pcs.
0.1273 €
1000 pcs.
0.1083 €
2500 pcs.
0.0940 €
*incl. VAT plus shipping costs
Subject to prior sale

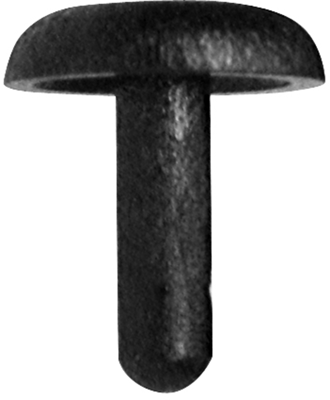

Plastic rivets for semiconductors, type Fischer EPN 1.

Suitable for use as reusable press-fit rivet for fast and reliable mounting of transistors and other components on heatsinks. cooling plates etc; Material: polysulphone to UL 94 V-0. Operating temperatures: –70 to +180 °C. The holder consists of the rivet pin and socket.

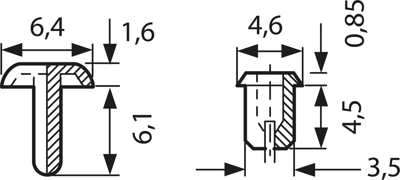

Type: EPN 1, rivet holder

Technical specifications
max. operating temperature 180 °C
min. operating temperature -70 °C
Material PSU/fiberglass
Suitable for TO-220
Version rivet holder
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
