10037366 | Fischer Elektronik

O-028, holder without strap

Order No.: 11H2958
EAN: 4099889464115
MPN:
10037366
KHPC 028 O
Series: KHPC
10037366 Fischer Elektronik PCB Fasteners Image 1
10037366 Fischer Elektronik PCB Fasteners Image 2
Image may differ
Unit Price (€ / pc.)
3.4034 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4034 €

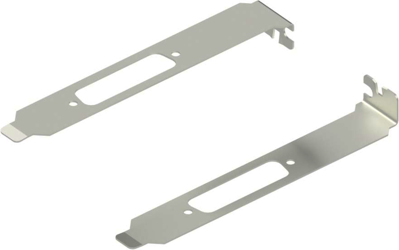

Card holder, 10037366, Fischer Elektronik

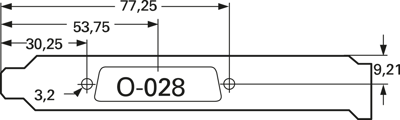

Compliant with IBM specs. Holder with a bead in the upper bending and a 5° angle in the lower strap tongue. With the provided sections it offers a high stability mechanical connection for I/O-connectors and other components on the PCB. The card holders are inserted as backplane slot metal covers of PC cases without direct mounting strap connection to the PCB; Material: stainless steel (V2A), 0.8-mm thickness.

For 1 sub-D connector, 25-pole, type KHPC-.

Type: O-028, holder without strap.

Technical specifications
Colour gray
Panel thickness 0.8 mm
Version card holder
Material stainless steel
Logistics
Country of origin DE
Customs tariff number 84733080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
