10037345 | Fischer Elektronik
Card holder, without mounting bracket, stainless steel, dark gray, 10037345
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: On Request

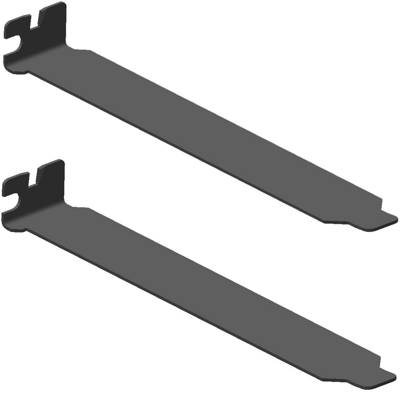

Card holder, 10037345, Fischer Elektronik
Compliant with IBM specs. Holder with a bead in the upper bending and a 5° angle in the lower strap tongue. With the provided sections it offers a high stability mechanical connection for I/O-connectors and other components on the PCB. The card holders are inserted as backplane slot metal covers of PC cases without direct mounting strap connection to the PCB; Material: stainless steel (V2A), 0.8-mm thickness.
Without recesses, type KHPC-.

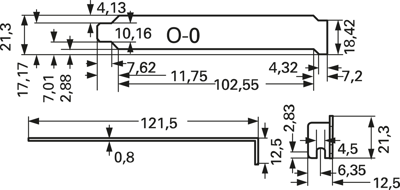

Type: O-0, holder without strap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | dark gray | |
| Product type | card holder | |
| Version | without mounting bracket | |
| Panel thickness | 0.8 mm | |
| Material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84733080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
