10037287 | Fischer Elektronik
Card holder, with mounting bracket, stainless steel, gray, 10037287
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: On Request

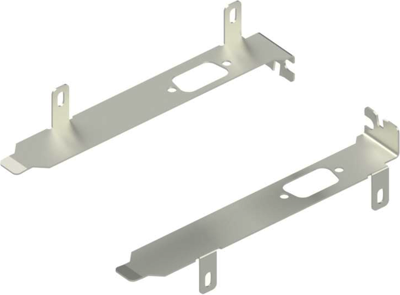

Card holder, 10037287, Fischer Elektronik
Compliant with IBM specs. Holder with a bead in the upper bending and a 5° angle in the lower strap tongue. With the provided sections it offers a high stability mechanical connection for I/O-connectors and other components on the PCB. The card holders are inserted as backplane slot metal covers of PC cases without direct mounting strap connection to the PCB; Material: stainless steel (V2A), 0.8-mm thickness.
For 1 sub-D connector, 9-pole, type KHPC-.

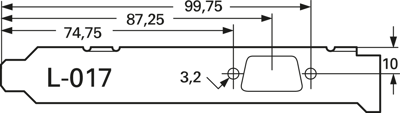

Type: L-017, holder with strap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Product type | card holder | |
| Version | with mounting bracket | |
| Panel thickness | 0.8 mm | |
| Material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84733080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
