SLLP6SMD03852GSM | Fischer Elektronik

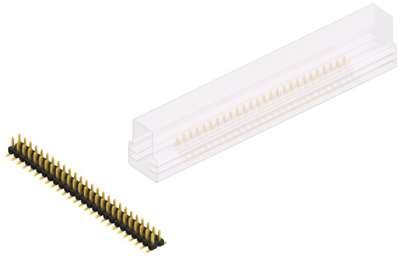

Pin header, 52 pole, pitch 2.54 mm, angled, black, SLLP6SMD03852GSM
Unit Price (€ / pc.)
5.2122 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2122 €
10 pcs.
4.6886 €
50 pcs.
4.3197 €
100 pcs.
3.9746 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, SLLP6SMD03852GSM, Fischer Elektronik
Pin header, low profile in SMD-technology, 0.635 mm.
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Pin number | 52 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
