MK23SMD5BTR | Fischer Elektronik

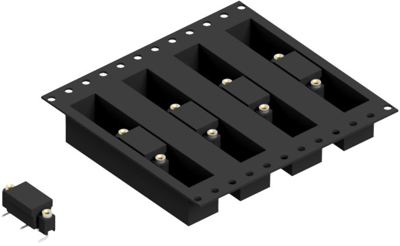

Socket header, 5 pole, pitch 2.54 mm, angled, MK23SMD5BTR
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4756 €
25 pcs.
1.3685 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, MK 23 SMD 5 B TR, Fischer Elektronik
Socket header for Ø 0.5 mm with no capilliary action when soldering due to protected inner contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Grid | 2.54 mm | |
| Rated voltage | 60 V | |
| Rated current | 1.5 A | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
