MK22196 | Fischer Elektronik

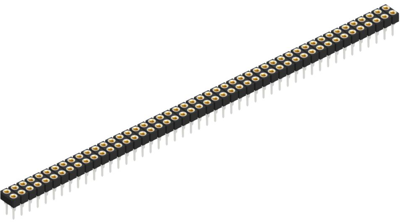

Socket header, 96 pole, pitch 2.54 mm, straight, MK22196
Unit Price (€ / pc.)
21.5033 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
21.50 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5033 €
5 pcs.
20.3847 €
10 pcs.
19.0757 €
25 pcs.
17.3859 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, MK 221 96, Fischer Elektronik
Socket header, 0.635 mm and up to 0.85 mm Ø. No capilliary action when soldering due to protected contact insert.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | gold-plated | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Pin number | 96 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 3 A | |
| Number of rows | 2 | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
