MK22156 | Fischer Elektronik

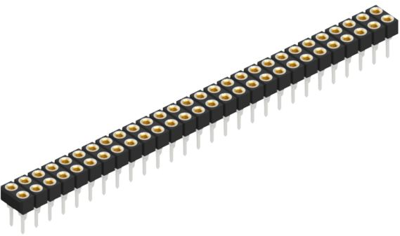

Socket header, 56 pole, pitch 2.54 mm, straight, MK22156
Unit Price (€ / pc.)
13.3042 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
13.30 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3042 €
10 pcs.
12.2332 €
50 pcs.
11.1384 €
100 pcs.
10.1388 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket header, MK 221 56, Fischer Elektronik
Socket header, 0.635 mm and up to 0.85 mm Ø. No capilliary action when soldering due to protected contact insert.
Technical specifications
| contact surface | tin-plated | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Pin number | 56 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
