10132999 | Fischer Elektronik

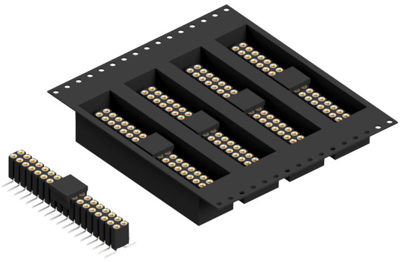

Socket header, 36 pole, pitch 2.54 mm, angled, 10132999
Unit Price (€ / pc.)
10.234 € *
Standard delivery time from the manufacturer is: 6 Weeks
Socket header, BL 16 SMD 113 36 B TR, Fischer Elektronik
Socket header for 0.635 mm and up to 0.85 mm Ø. No capilliary action when soldering due to protected contact insert.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Pin number | 36 pole | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Grid | 2.54 mm | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
