10062444 | Fischer Elektronik

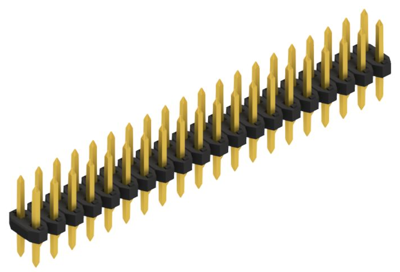

Pin header, 40 pole, pitch 2 mm, straight, black, 10062444
 Order No.: 64F3077
  MPN:
  10062444
  SLY 2 085 40 G
   This item is no longer available.
  As an alternative, we recommend the following item:

  Pin header, 40 pole, pitch 2 mm, straight, black, 10062444
  Order No.: 59F6969
  Manufacturer: Fischer Elektronik
   per pc.  3.6771 €  *
  Pin header, 10062444, Fischer Elektronik
Standard pin header, 0.5 mm, straight.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | gold-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 100 V | |
| Connection | solder connection | |
| Pin number | 40 pole | |
| Version | pin header | |
| Number of rows | 2 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
