10062116 | Fischer Elektronik

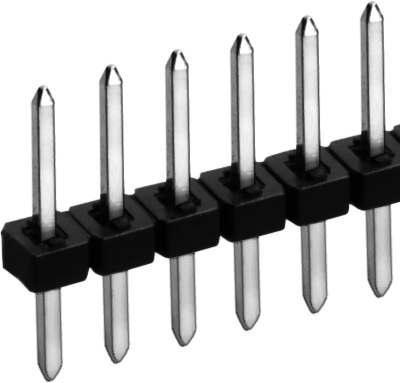

Pin header, 36 pole, pitch 2 mm, straight, black, 10062116
Unit Price (€ / pc.)
3.3201 € *
Available: 67 pcs.
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0821 €
25 pcs.
2.8798 €
50 pcs.
2.6180 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, type Fischer SLY.

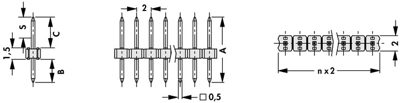

With 2.0 mm grid, splittable, single-row and double-row, with 0.5 x 0.5 mm square pins, for soldering into PCBs; Rated current: 3.0 A. Rated voltage: 100 VDC. Test voltage: 500 V. Insulator: PA 4.6, GF. Inflammability class: UL 94 V-0. Insulation resistance: min. 1000 Gohm. Contacts: CuSn alloy with 0.2 µm gold-plating on nickel primer. Contact resistance: max. 5.0 mohm. Cohesion: min. 5.0 N/m. Operating temperatures: –40 to +163 °C. Dimensions DxH: dimension A 8.5 mm, dimension B 4.0 mm, dimension C 3.0 mm.
Straight version with solder pin length C 3.0 mm, type SLY 1/SLY 2.

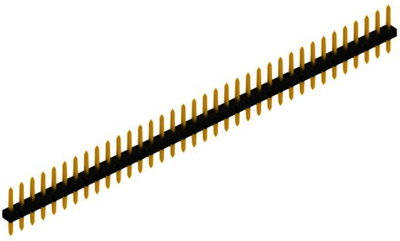

Type: SLY 1, 36–pole, single–row
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 100 V | |
| Connection | PCB connection | |
| Pin number | 36 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
