10059431 | Fischer Elektronik

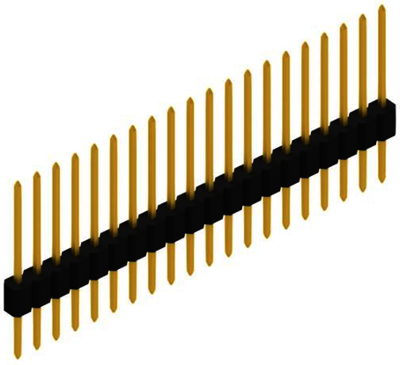

Pin header, 20 pole, pitch 1.27 mm, straight, black, 10059431
Unit Price (€ / pc.)
4.3316 € *
Available: 73 pcs.
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
10 pcs.
4.0222 €
25 pcs.
3.7604 €
50 pcs.
3.4153 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, type Fischer SLM N.
Straight. solder pin length C 3.1 mm; Grid: 1.27 mm. With narrow insulator, suitable for BLM socket headers. Interruptible, single-row, with 0.3 x 0.3 mm square pins. For soldering into PCBs. Rated current: 1.5 A. Rated voltage: 125 VAC. Test voltage: 500 V. Insulator: PA 4.6 glass fiber-reinforced. Inflammability class: UL 94 V-0. Insulation resistance: at least 1000 Gohm. Contacts: phosphor bronze 0.2 µm gold-plated on nickel primer. Contact resistance: max. 5.0 mohm. Holding force: at least 3.0 N. Operating temperatures: –40 to +163 °C.

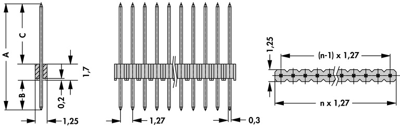

Technical attributes (type, number of poles, dimensions A, B): SLM N1/63, 20–pole, A 6.3, B 11.1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | PCB connection | |
| Pin number | 20 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
