10058271 | Fischer Elektronik
Pin header, 36 pole, pitch 2.54 mm, straight, black, 10058271
Unit Price (€ / pc.)
3.5224 € *
Available: 399 pcs.
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.1178 €
100 pcs.
2.7132 €
250 pcs.
2.6180 €
1000 pcs.
2.4514 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, low-profile, type Fischer SL LP.

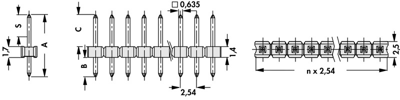

2.54 mm grid, interruptible, single and dual row, with 0.635 x 0.635 mm square pins, for soldering into PCBs; Rated current: 3.0 A. Rated voltage: 250 VAC. Test voltage: 2000 V. Isolator PA 4.6 GF. Insulation resistance: at least 1000 Gohm. Contact material: CuSn alloy. Contact finish: 0.2 µm Au or 6.0 µm tin on nickel primer. Contact resistance: max. 5.0 mohm, for solder bath up to +260 °C (1.0 min.). Operating temperatures: –40 to +163 °C. Solder pin length (B): 3.0 mm.

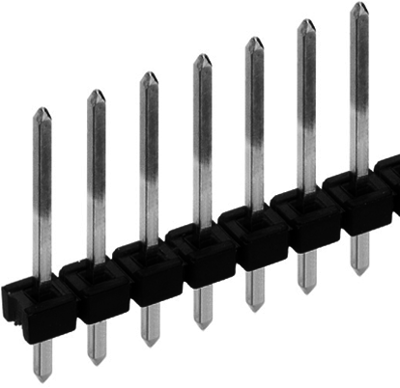

Straight, single-row, type SL LP.
Technical attributes (type, number of poles, dimensions, contact surface): SL LP 1/082, 36–pole, A 8.2, C 3.5 mm, gold–plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Version | pin header | |
| Colour | black | |
| Connection | PCB connection | |
| Pin number | 36 pole | |
| Additional parts | equipped | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
