10053270 | Fischer Elektronik

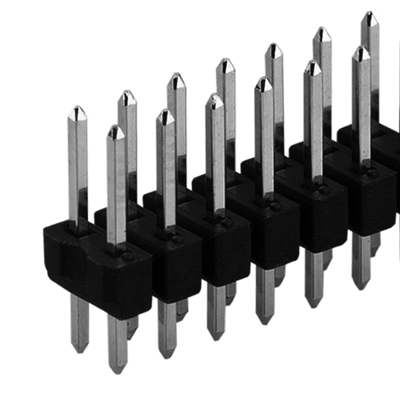

Pin header, 20 pole, pitch 2.54 mm, straight, black, 10053270
Pin headers for PCB mounting, type Fischer SL.
With 2.54 mm grid, interruptible, single-row or dual-row, with 0.635 x 0.635 mm square pins. For soldering into PCBs; Rated current: 3.0 A. Rated voltage: 250 VAC. Test voltage: 2000 V. Insulator: PA 4.6 GV. Inflammability class: UL 94 V-0. Insulation resistance: at least 1000 Gohm. Contacts: phosphor bronze, 0.2 mu gold-plated on nickel primer or selective gold-plated, respectively 6.0 µm tinned. Contact resistance: max. 5.0 mohm. Holding force: at least 7.0 N. Operating temperatures: –40 to +163 °C (+260 °C for 1 minute).

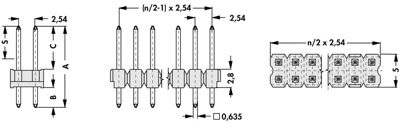

Straight dual-row with solder pin length B 5.8 mm, type SL 2.
Technical attributes (type, number of poles, dimensions A, C, contact finish): SL 2/25, 2 x 10-pole, A 11.2, C 2.6 mm, gold-plated
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Connection | PCB connection | |
| Colour | black | |
| Rated voltage | 250 V | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 20 pole | |
| Contact type | pin | |
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Additional parts | equipped |
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
