10051034 | Fischer Elektronik

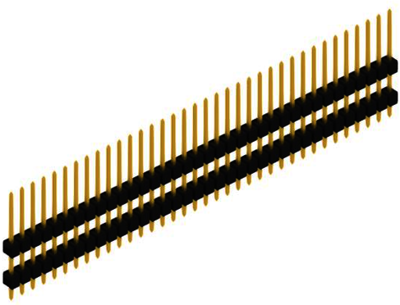

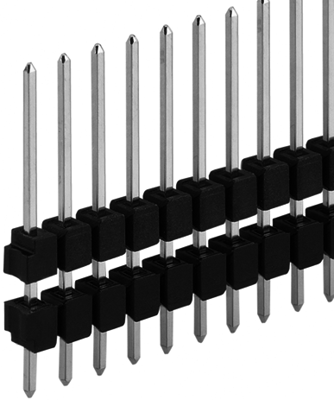

Pin header, 36 pole, pitch 2.54 mm, straight, black, 10051034
Unit Price (€ / pc.)
6.5569 € *
Available: 51 pcs.
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
5 pcs.
6.2237 €
10 pcs.
5.8191 €
25 pcs.
5.3074 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB connections, type Fischer SL 13/SL 14.
With 2.54 mm grid, splittable, single-row or dual-row, for interconnecting stacked PCBs. Mating with BL 11 and BL 12 socket headers; Rated current: 3.0 A. Rated voltage: 250 VAC. Test voltage: 2000 V. Insulator: PA 4.6 GV. Inflammability class: UL 94 V-0. Insulation resistance: at least 1000 Gohm. Contacts: CuSn alloy, 0.2 µm gold-plated on nickel primer. Contact resistance: max. 5.0 mohm. Holding force: at least 7.0 N. Operating temperatures: –40 to +163 °C (260 °C for 1.0 minute).
Single-row, type SL 13.
Technical attributes (type, number of poles, dimension A): SL 13/097, 36–pole, A 9.7 mm, gold–plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Connection | solder connection | |
| Colour | black | |
| Rated voltage | 250 V | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 36 pole | |
| Contact type | pin | |
| Number of rows | 1 | |
| Grid | 2.54 mm | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
