10043391 | Fischer Elektronik
Socket header, 68 pole, pitch 2.54 mm, straight, 10043391
Unit Price (€ / pc.)
17.8262 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.83 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8262 €
10 pcs.
16.3982 €
50 pcs.
14.9226 €
100 pcs.
13.5779 €
*incl. VAT plus shipping costs
Subject to prior sale

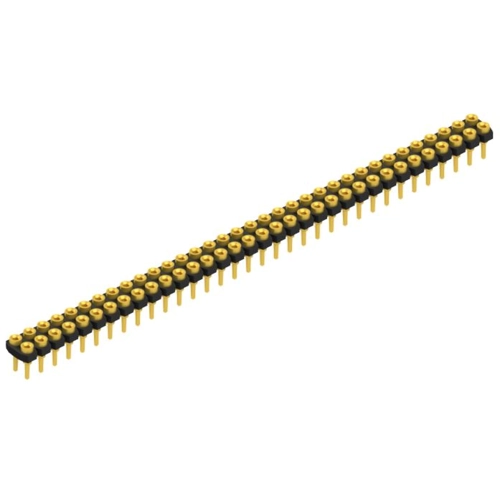

Socket header, MK LP 219 68 G, Fischer Elektronik
Socket header, low profile, less than 2.7/3.1 mm above PCB, with contact spring for Ø 0.5 mm pins, solder and plug pin Ø 0.76 mm.
Technical specifications
| contact surface | gold-plated | |
| Rated current | 1.5 A | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Pin number | 68 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | socket | |
| Rated voltage | 60 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
