10041834 | Fischer Elektronik

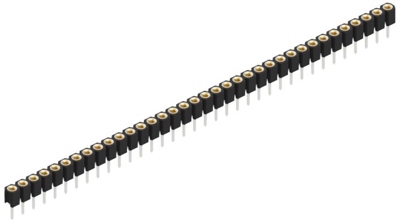

Socket header, 36 pole, pitch 2.54 mm, straight, 10041834
Unit Price (€ / pc.)
8.4133 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.41 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4133 €
10 pcs.
7.7350 €
50 pcs.
7.0448 €
100 pcs.
6.4141 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, MK 21 36, Fischer Elektronik
Socket header, 0.635 mm and up to 0.85 mm Ø.
Technical specifications
| Connection plating | gold-plated | |
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 36 pole | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Grid | 2.54 mm | |
| Rated current | 3 A | |
| Contact type | socket | |
| Version | socket header |
Download
Logistics
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
