10041713 | Fischer Elektronik

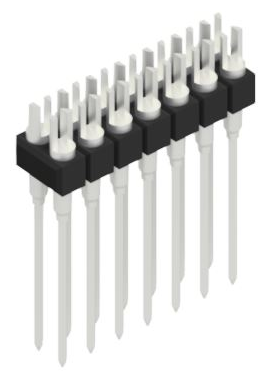

Pin header, 14 pole, pitch 2.54 mm, straight, black, 10041713
Unit Price (€ / pc.)
11.7572 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.76 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7572 €
10 pcs.
10.5791 €
50 pcs.
9.7342 €
100 pcs.
9.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, MK 208 14 Z, Fischer Elektronik
Wire wrap pin with soldering fork, square 0.635 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder connection | |
| Number of rows | 2 | |
| Colour | black | |
| contact surface | tin-plated | |
| Version | pin header | |
| Orientation | straight | |
| Additional parts | equipped | |
| Rated current | 1.5 A | |
| Pin number | 14 pole | |
| Grid | 2.54 mm | |
| Rated voltage | 60 V | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
