10040422 | Fischer Elektronik

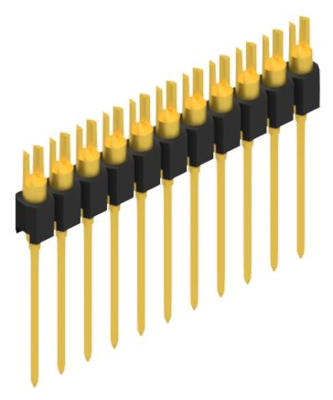

Pin header, 11 pole, pitch 2.54 mm, straight, black, 10040422
Unit Price (€ / pc.)
12.5426 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.54 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5426 €
10 pcs.
11.2812 €
50 pcs.
10.3768 €
100 pcs.
9.6509 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, MK 08 11 G, Fischer Elektronik
Wire wrap pin with soldering fork, square 0.635 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 11 pole | |
| Colour | black | |
| Connection plating | gold-plated | |
| Contact type | pin | |
| Rated current | 1.5 A | |
| Version | pin header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 60 V | |
| contact surface | gold-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
