10031633 | Fischer Elektronik
DIL connector, 8 pole, pitch 2.54 mm, straight, black, 10031633
Unit Price (€ / pc.)
2.1539 € *
Available: 16 pcs.
Total Price:
2.15 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1539 €
10 pcs.
1.9873 €
50 pcs.
1.8088 €
100 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

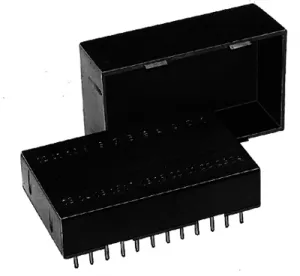

DiL plugs, type Fischer Dils.
2.54 mm grid, with spring bronze contacts, gold-plated on nickel primer; Current loading per contact: max. 1.0 A. Plug-in platform and housing: polysulphone. Dielectric strength: 1.0 kV.
Plug inserts, type Dils.
Technical attributes (number of poles, dimensions C/L/B): 8-pole, C 7.62/L 12.4/B 12.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Contact type | socket/pin | |
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | DIL connector | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
