10027725 | Fischer Elektronik

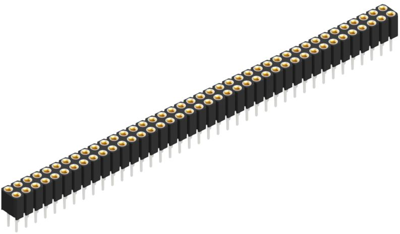

Socket header, 80 pole, pitch 2 mm, straight, 10027725
Unit Price (€ / pc.)
16.8504 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
16.85 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8504 €
5 pcs.
15.9817 €
10 pcs.
14.9464 €
25 pcs.
13.6255 €
*incl. VAT plus shipping costs
Subject to prior sale
Female socket, 10027725, Fischer Elektronik
Female socket for 0.5 mm and up to 0.56 mm Ø.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | solder connection | |
| Connection plating | gold-plated | |
| Rated voltage | 100 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 80 pole | |
| Additional parts | equipped | |
| Version | socket header | |
| Rated current | 2.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
