10027706 | Fischer Elektronik

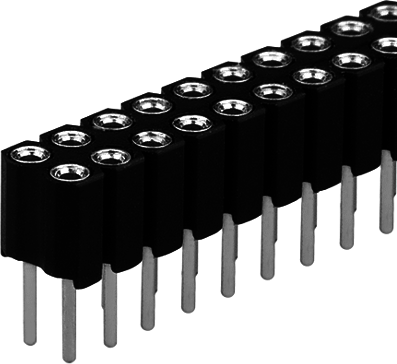

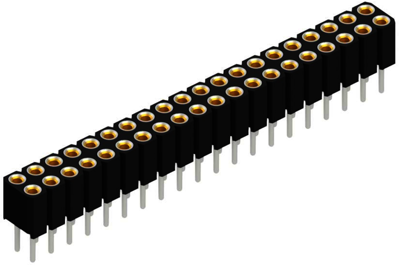

Socket header, 40 pole, pitch 2 mm, straight, black, 10027706
Unit Price (€ / pc.)
7.5446 € *
Available: 19 pcs.
Total Price:
7.54 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5446 €
10 pcs.
6.9377 €
50 pcs.
6.3070 €
100 pcs.
5.6763 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket headers for PCB mounting, type Fischer BLY.
With 2.0 mm grid, splittable, single-row and double-row, for 0.4 x 0; .56 mm pins (square pins: 0.45 to 0.5 mm), with straight solder pins for PCB mounting. Rated current: 2.5 A. Rated voltage: 100 VDC. Test voltage: 500 V. Insulator: PA 4.6, GF. Inflammability class: UL 94 V-0. Insulation resistance: min. 1000 Gohm. Contact block material: CuZn alloy. Contact receptacle finish: Ni + 4.0 µm tin. Inner spring contact: CuBe alloy, Ni + 0.25 µm Au. Contact resistance: max. 10 mohm. Retention forces: insertion/removal min. 1.27/0.3 N/m. Operating temperatures: –40 to +163 °C (briefly up to +260 °C).
Type: BLY 2, 2 x 20–pole, dual–row
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 100 V | |
| Rated current | 2.5 A | |
| Grid | 2 mm | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Version | socket header | |
| Colour | black | |
| Connection | PCB connection | |
| Pin number | 40 pole | |
| Additional parts | equipped | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
