10027654 | Fischer Elektronik

Socket header, 10 pole, pitch 2 mm, straight, black, 10027654

Order No.: 59F9438
EAN: 4099891007980
MPN:
10027654
BLY 1 10
Series: BLY 1

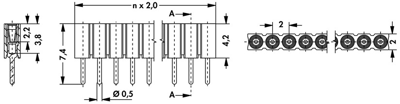

10027654 Fischer Elektronik PCB Connection Systems Image 1

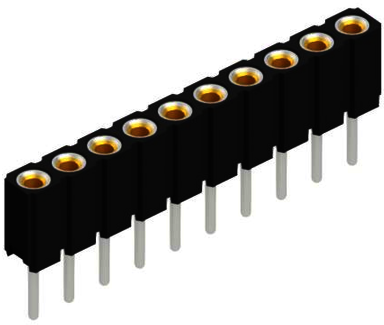

10027654 Fischer Elektronik PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 213 pcs.
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
25 pcs.
1.7493 €
100 pcs.
1.6065 €
250 pcs.
1.5232 €
1000 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket headers for PCB mounting, type Fischer BLY.

With 2.0 mm grid, splittable, single-row and double-row, for 0.4 x 0; .56 mm pins (square pins: 0.45 to 0.5 mm), with straight solder pins for PCB mounting. Rated current: 2.5 A. Rated voltage: 100 VDC. Test voltage: 500 V. Insulator: PA 4.6, GF. Inflammability class: UL 94 V-0. Insulation resistance: min. 1000 Gohm. Contact block material: CuZn alloy. Contact receptacle finish: Ni + 4.0 µm tin. Inner spring contact: CuBe alloy, Ni + 0.25 µm Au. Contact resistance: max. 10 mohm. Retention forces: insertion/removal min. 1.27/0.3 N/m. Operating temperatures: –40 to +163 °C (briefly up to +260 °C).

Type: BLY 1, 10–pole, single–row

Technical specifications
Filter Property Value
Rated voltage 100 V
Rated current 2.5 A
Grid 2 mm
Connection plating tin-plated
Number of rows 1
Orientation straight
contact surface gold-plated
Version socket header
Colour black
Connection solder connection
Pin number 10 pole
Additional parts equipped
Contact type socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
