10027638 | Fischer Elektronik

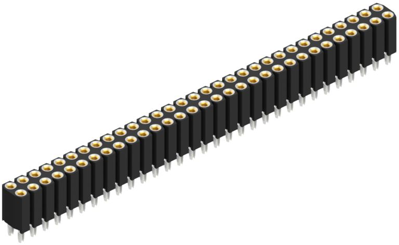

Socket header, 62 pole, pitch 2.54 mm, straight, 10027638
Unit Price (€ / pc.)
30.4283 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30.43 € *
Price list
Quantity
Price per unit*
1 pcs.
30.4283 €
10 pcs.
28.2982 €
25 pcs.
26.0372 €
50 pcs.
23.6929 €
*incl. VAT plus shipping costs
Subject to prior sale
Female socket, 10027638, Fischer Elektronik
Female socket, high-precision female headers for 0,635 mm and pins up to 0,85 mm Ø. Press-fit mounting without soldering, resilient press-fit area.
Technical specifications
| contact surface | tin-plated | |
| Rated current | 2 A | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Pin number | 62 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | press-fit | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
