10026733 | Fischer Elektronik

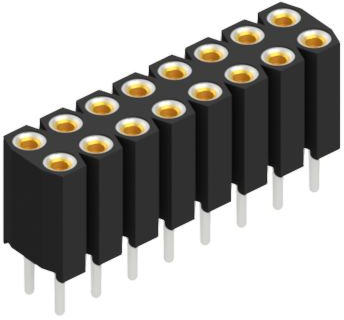

Socket header, 16 pole, pitch 2.54 mm, straight, 10026733
Unit Price (€ / pc.)
4.2959 € *
Available: 5 pcs.
Total Price:
4.30 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2959 €
10 pcs.
3.9032 €
50 pcs.
3.5105 €
100 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
Female socket, 10026733, Fischer Elektronik
Female socket with inner spring contact surface: Ni + 0.75µm Au.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Connection plating | gold-plated | |
| Contact type | socket | |
| Rated current | 3 A | |
| Version | socket header | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Rated voltage | 150 V | |
| Pin number | 16 pole | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
