10026638 | Fischer Elektronik
Socket header, 72 pole, pitch 2.54 mm, angled, black, 10026638
Unit Price (€ / pc.)
9.2463 € *
Available: 84 pcs.
Total Price:
9.25 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2463 €
10 pcs.
8.5085 €
*incl. VAT plus shipping costs
Subject to prior sale

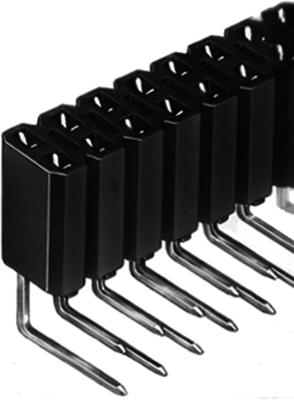

Socket headers for PCB mounting, type Fischer BL.
With 2.54 mm grid, splittable, single-row and double-row, for square pins 0.36 x 0.36 to 0.72 x 0.72 mm, for soldering into PCBs; Rated current: 3.0 A. Rated voltage: 125 VAC. Test voltage: 1500 V. Capacitance between two adjacent contacts: max. 0.9 pF. Insulator: PPS, GF. Inflammability class: UL 94 V-0. Insulation resistance: min. 1000 Gohm. Contacts: CuSn alloy with selective 0.2 µm gold-plating on nickel primer or 6.0 µm tin-plated. Contact resistance: max. 10 mohm. Cohesion: insertion/removal min. 1.5/1.3 N/m. Operating temperatures: –40 to +200 °C.

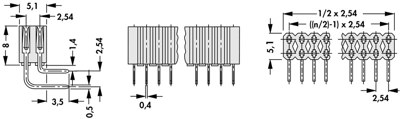

Angled dual-row, type BL 4.
Type: BL 4, 2 x 36–pole, gold–plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 125 V | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Version | socket header | |
| Colour | black | |
| Connection | PCB connection | |
| Pin number | 72 pole | |
| Additional parts | equipped | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Bar with 5 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
