10007461 | Fischer Elektronik

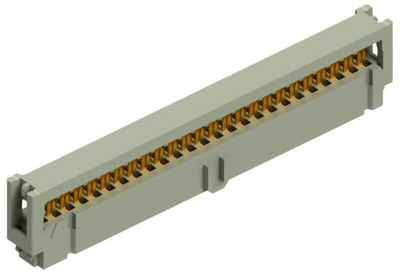

Socket header, 50 pole, pitch 2.54 mm, straight, gray, 10007461
Unit Price (€ / pc.)
10.4244 € *
Available: 63 pcs.
Total Price:
10.42 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4244 €
10 pcs.
9.5914 €
50 pcs.
8.7227 €
100 pcs.
7.8540 €
*incl. VAT plus shipping costs
Subject to prior sale

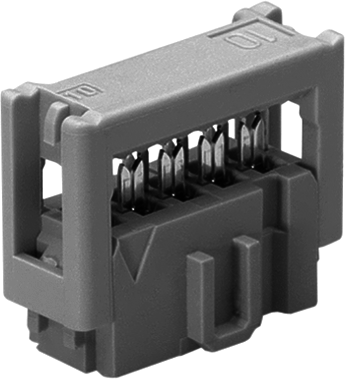

Female connectors for ribbon cables, type Fischer PV.
For insertion on pin headers (e.g. type 511.030, TE ConnectivityAMP Modu II etc.), with automatic insulation displacement terminals for wires from AWG 28 to 30 and max. insulation diameter of 1.1 mm; Contact finish: gold-plated on nickel primer. Insulator: polycarbonate. Color: gray, RAL 7032. Operating temperatures: –55 to +125 °C. Rated current: 2.0 A. Rated voltage: 250 Volt.
Technical attributes (type, number of poles, dimensions): PV 50, 50-pole, A 68.10/B 60.96 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | IDC connection | |
| Colour | gray | |
| Additional parts | equipped | |
| Pin number | 50 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| contact surface | gold-plated | |
| Version | socket header | |
| Rated current | 2 A | |
| Number of rows | 2 | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
