10007460 | Fischer Elektronik

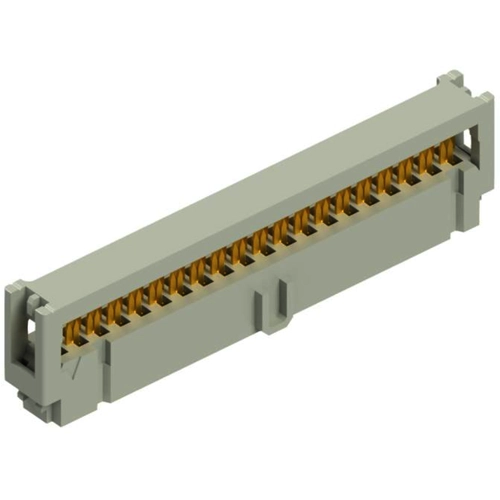

Socket header, 40 pole, pitch 2.54 mm, straight, gray, 10007460
Unit Price (€ / pc.)
6.5688 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.57 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5688 €
10 pcs.
6.0452 €
50 pcs.
5.4978 €
100 pcs.
4.9504 €
*incl. VAT plus shipping costs
**Subject to prior sale

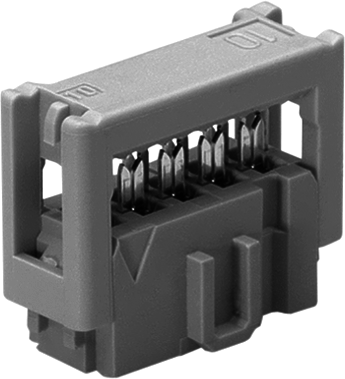

Female connectors for ribbon cables, type Fischer PV.
For insertion on pin headers (e.g. type 511.030, TE ConnectivityAMP Modu II etc.), with automatic insulation displacement terminals for wires from AWG 28 to 30 and max. insulation diameter of 1.1 mm; Contact finish: gold-plated on nickel primer. Insulator: polycarbonate. Color: gray, RAL 7032. Operating temperatures: –55 to +125 °C. Rated current: 2.0 A. Rated voltage: 250 Volt.
Technical attributes (type, number of poles, dimensions): PV 40, 40-pole, A 55.40/B 48.26 mm
Technical specifications
| Version | socket header | |
| Colour | gray | |
| Number of rows | 2 | |
| Rated current | 2 A | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Connection | IDC connection | |
| Orientation | straight | |
| Pin number | 40 pole | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Grid | 2.54 mm | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
