10007457 | Fischer Elektronik

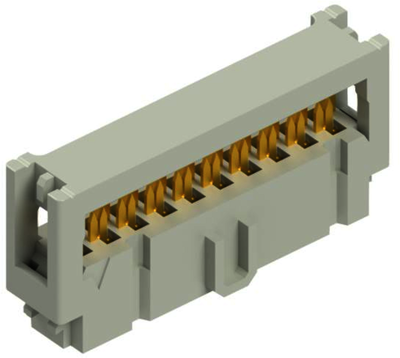

Socket header, 20 pole, pitch 2.54 mm, straight, gray, 10007457
Unit Price (€ / pc.)
4.0222 € *
Available: 102 pcs.
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.5462 €
100 pcs.
3.1059 €
250 pcs.
2.9869 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connectors for ribbon cables, type Fischer PV.
For insertion on pin headers (e.g. type 511.030, TE ConnectivityAMP Modu II etc.), with automatic insulation displacement terminals for wires from AWG 28 to 30 and max. insulation diameter of 1.1 mm; Contact finish: gold-plated on nickel primer. Insulator: polycarbonate. Color: gray, RAL 7032. Operating temperatures: –55 to +125 °C. Rated current: 2.0 A. Rated voltage: 250 Volt.
Technical attributes (type, number of poles, dimensions): PV 20, 20-pole, A 30.00/B 22.86 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | socket header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | socket | |
| Colour | gray | |
| Pin number | 20 pole | |
| Connection | IDC connection | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
